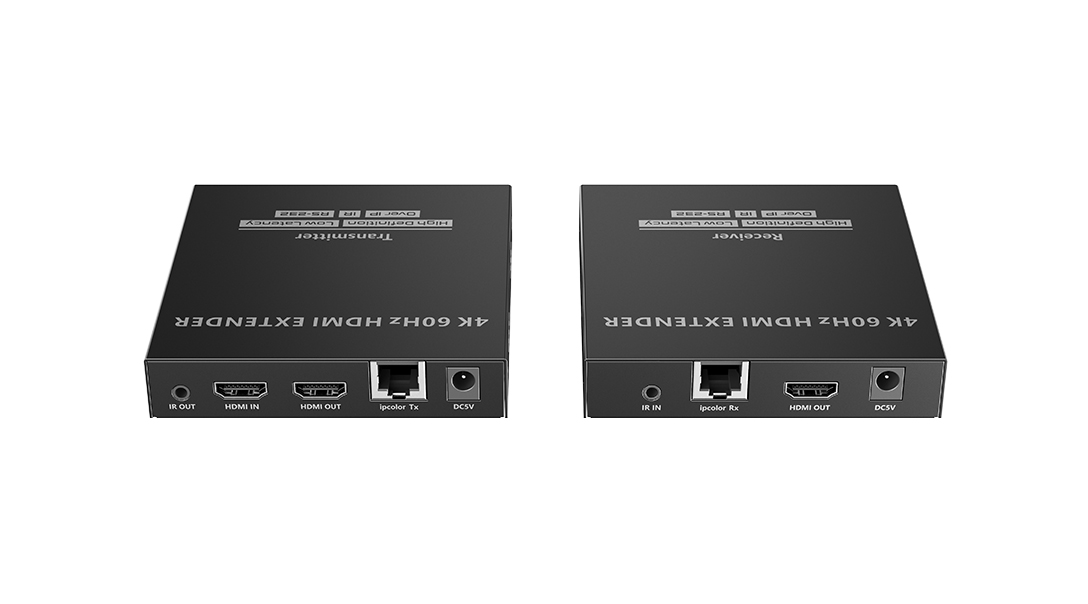

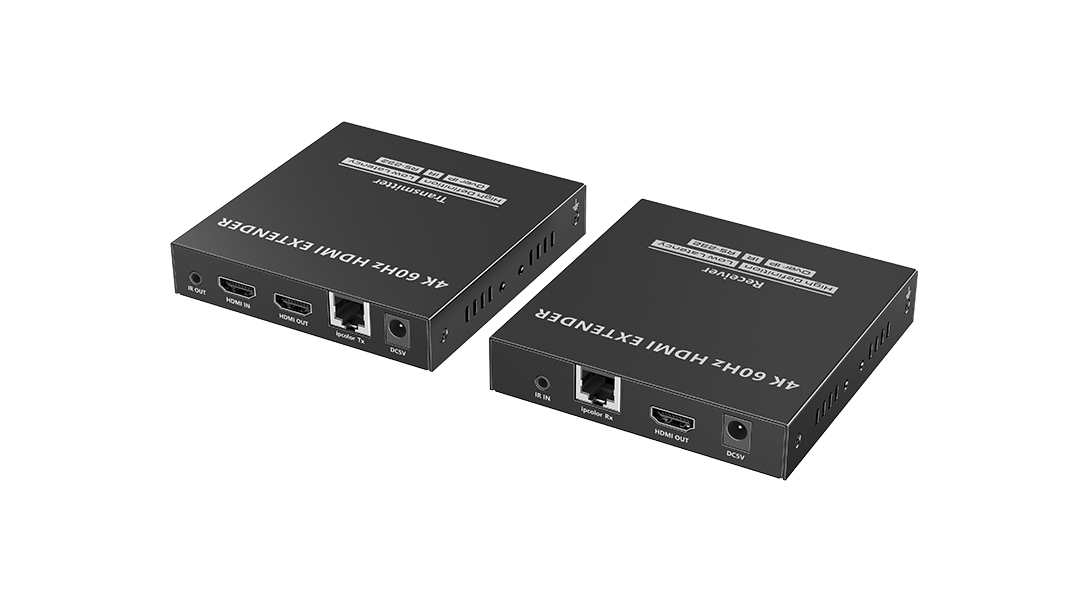

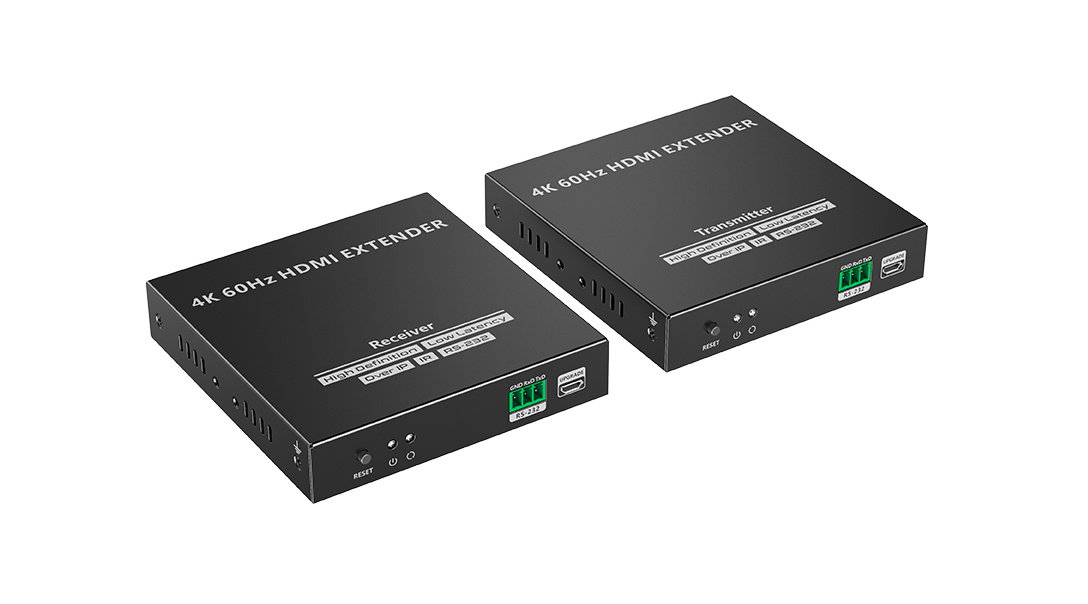

LKV582

4K@60Hz 120M HDMI™ over IP Extender

· Features
1. Adopting ipcolor STREAM technology can realize high-definition and low-latency transmission.
2. Support up to 3840 x 2160@60Hz resolution, backward compatible.
3. Compatible with Cat5/5e/6 or above network cables, transmission distance of Cat6 cable is 120 meters.
4. Support one-to-one or one-to-many connections through the gigabit switch.
5. Support RS-232 passthrough.
6. The transmitter supports HDMI loop out.
7. Support IR passback (20~60kHz).
8. Firmware can be upgraded through Micro USB.
9. Lightning protection, surge protection, ESD protection.
10. Working 24/7.

Introduction

Parameters

Downloads


HDMI length

≤ 5m

Maximum transfer rate

18Gbps

Compatibility

HDMI 2.0
HDCP 1.4/HDCP 2.2

Resolutions

3840x2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920x1200@60Hz, 2560x1440@60Hz, 2560x1600@60Hz

Connection types

One-to-one connection
One-to-many connection
Switch cascading

Transmission distance

Cat6/6A/7≤120m

Transmission latency

70~180ms

IR receiving range

≤ 5m

IR frequency

20kHz~60kHz

RS-232 (GND/RXD/TXD)

Default baud rate: 115200
Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200

Power Supply

DC 5V/1A

Power Consumption

TX ≤ 4.5W
RX ≤ 2.5W

Working temperature

- 20℃~60℃

Storage temperature

30℃~70℃

Humidity

0~90%RH (no condensation）

Housing

lron

Weight

TX:254g, RX:242g

Color

Black

Dimensions

106.0(L)*103.0(W)*20.6(H)mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
