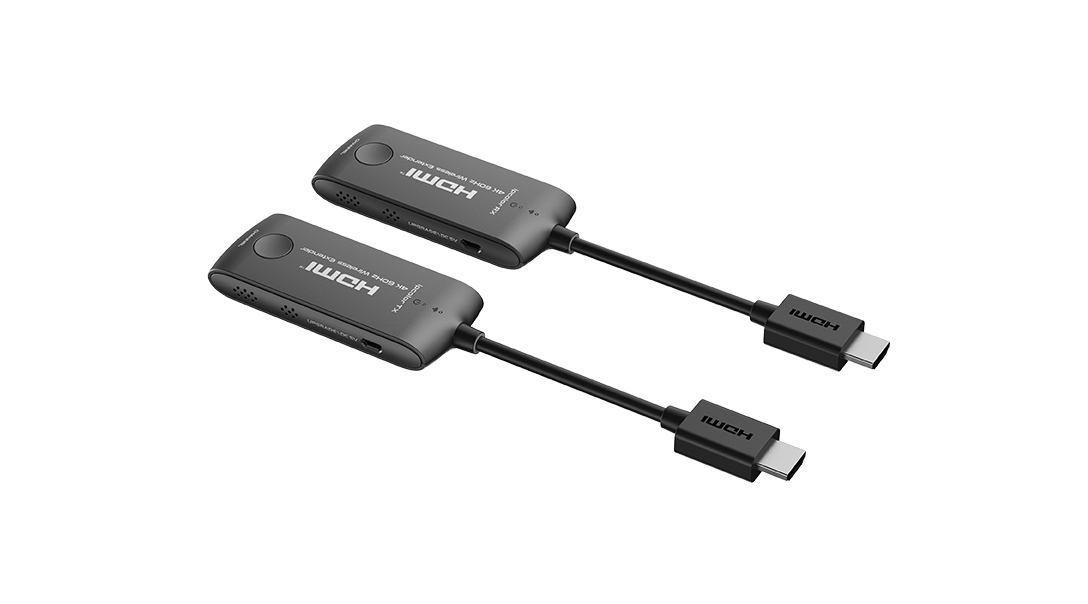

LKV488Mini-V2.0

16TXs-to-1RX 4K60Hz Wireless HDMI Extender

1. Adopting ipcolor STREAM technology can realize high definition and low-latency transmission.
2. Support up to 4096x2160@60Hz resolution, backward compatible.
3. Supports up to 16-to-1 wireless transmission, and the transmission distance up to 20 meters (line of sight).
4. In case of multiple sets of products in the same area, support SSID pairing and channel switching to avoid interference.
5. Support 5G wireless frequency bands, strong anti-interference.
6. Support firmware upgrade via Micro USB port.
7. Portable design, plug and play.
8. Supports stable 24/7 operation.

Introduction

Parameters

Downloads

Voltage/Current

Micro USB power supply (5V/1A)

Power consumption

TX < 4.5W, RX < 3.5W

HDMI version

HDMI 2.0

HDCP version

HDCP 1.4/HDCP 2.2

Max transmission rate

18Gbps

Resolution supported

4096x2160@24/30/50/60Hz (YUV 4:4:4, YUV 4:2:2 and RGB), 3840x2160@24/30/50/60Hz (YUV 4:4:4, YUV 4:2:2 and RGB), 1080P@50/60Hz, 720P@50/60Hz, 1920x1200@60Hz

Input and output TMDS signal

0.7~1.2Vp-p（TMDS）

Input and output DDC signal

5Vp-p（TTL）

Wi-Fi Frequency bands

5.18-5.24 GHz

Transmission distance

≤ 20m

Latency

100~250ms

Connection types

One to one

SSID pairing

Supported

ESD protection

1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2

Working temperature

-20~50℃

Storage temperature

-30~70℃

Humidity (no condensation)

0~90% RH

Dimension

TX: 40.2(W) * 230(L) * 15.0(H)mm
RX: 40.2(W) * 230(L) * 15.0(H)mm

Color

Black

Material

ABS

Net weight

TX: 58g; RX: 54g
